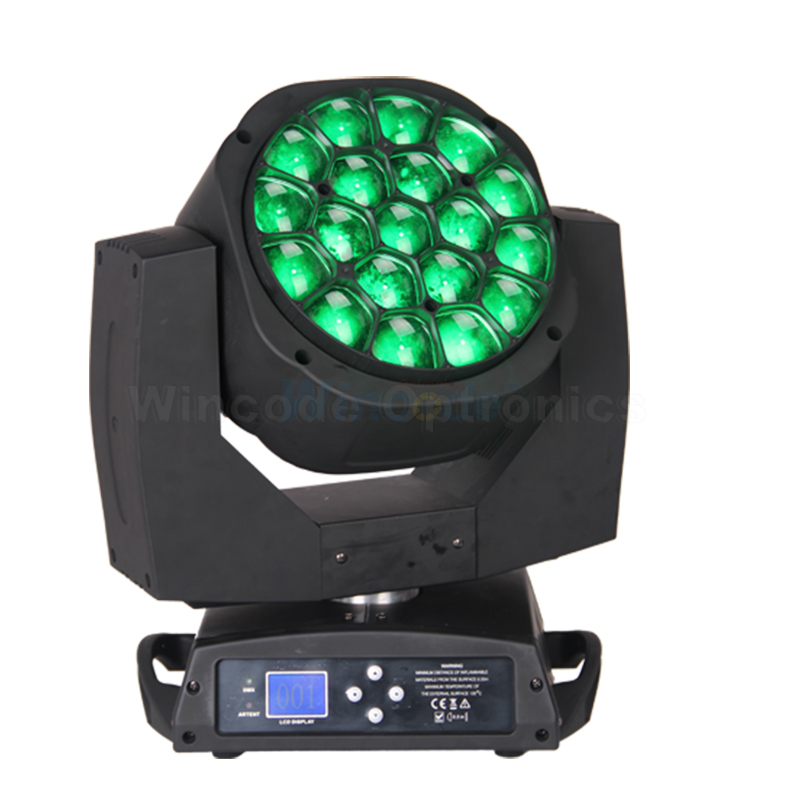

WOP-3010
Wincode Optronics
Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 450W
Light source: 19pcs 15W 4 in 1 color LED
LED Drive Current: 1000mA
Lamp life: 6-10 ten thousand hrs
Pan movement: 540 degrees
Tilt movement: 210 degrees
Pan/Tilt resolution: 8-16 bit
Zoonm: 4°-60°
Dimmer: 0-100% electronic dimmer
Strobe: 0-20 times / sec, adjustable
Control channels: 21CH(Standard)/23CH(Normal)/35CH(Shapes)/78CH(Extend) /96CH(Extend RGBW) /92CH(Full)
Control mode: DMX512, master/slave, Artnet, sound active
Cooling: low noise fan
Operation Temperature: -20°C ~45°C
Operation menu: LCD screen display
Packing size: 530*420*510mm
N.W: 15kg
G.W: 18.5kg
Features：
1. Each LED can be controlled individually. With unique honeycomb designed lens
2. The front lens can rotate without limitation in forward and reverse direction to create amazing effects
3. Display screen can be turned upside down with 180° to fit the installation in different place
4. Can be used as beam, wash or effect light use (Kaleido effects)
5. The scanning position can be memory, it will be automatically reset without expected movement after rotation.
6. Fan cooling (fan will be change the speed with the temperature variation).
Temperature detecting system (If the temperature detected error, the light doesn’t work to protect the fixture).
