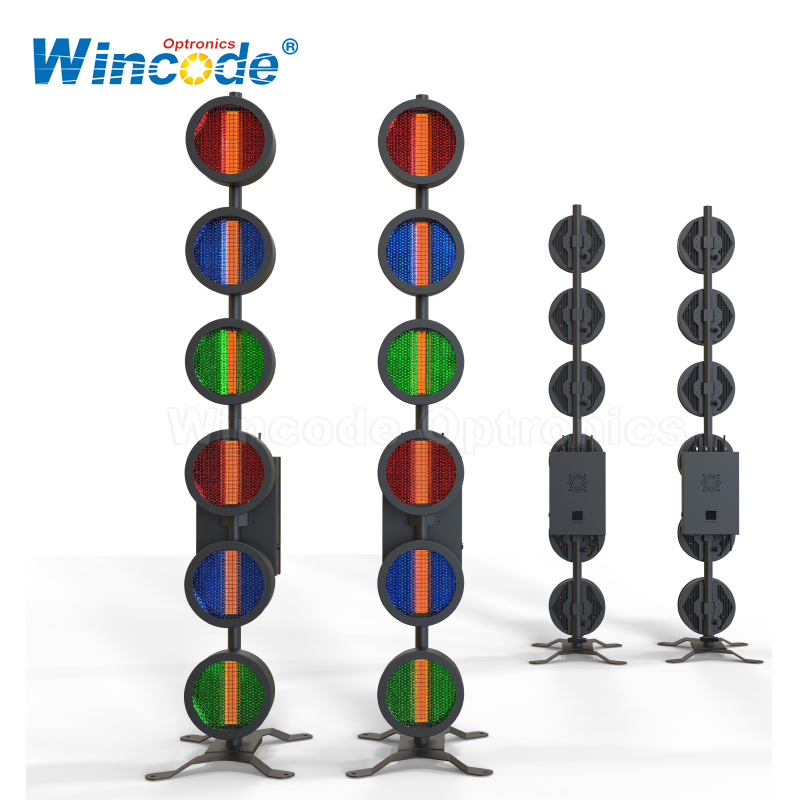

WOP-LRL600SRGB
Wincode Optronics
Light Source
Source:
WOP-LRL600SRGB: 6×60W LED 2200K+144pcs SMD5050 RGB
Flicker free operation
for broadcast TV and FILM
The life span may vary depending on
several following factors but not limited to:
Environmental Conditions,Power/Voltage, Usage methods (On-Off Cycling), Control, etc.
Color System
WOP-LRL600SRGB: 6×60W LED 2200K+144pcs SMD5050 RGB color mixing
Optics
Reflector bowl color : Golden /Silver(selected)
Strobe Effect
0-25Hz high speed shutter/strobe effect
with variable speed
Dimming System
0-100% Smooth linear LED dimming
Control System
1CH/6CH /6CH-Pixel DMX channels USITT
DMX-512
DMX512, master-slave, sound control or
auto operation
DMX recorder and edit function integrated
RDM available
(Remote Device Management)
Shielded input signal protection for stable
signal without interference
3/5-Pin XLR connectors IN/OUT
Software Update
Software up-datable
through DMX connectors
Muilt units up-datable in daisy chain
Display System
1.8" TFT LCD display
180°Reversible for LCD display
Display auto OFF
Cooling System
Advanced noise free cooling system
integrated aluminum
Constant temperature readout and
management function
Over temperature protection management
Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON connectors IN/OUT
WOP-LRL600SRGB: 450W
Housing
hexagonal/ Circle (selected)
Skeleton made of
high tension steel metal plates
Exterior finish: Black
Installation
Hang on / Put on the base
Truss-hanging kits, 2 options (Optional)
Wall-mounting kit (Optional)
Floor-stacking kit (Optional
Operating Condition
Operating positions: all
-25℃ to 45℃ ambient temperature
IP20 protection rating
Compliance
CE
2014/35/EU - Safety of electrical
equipment supplied at low voltage (LVD)
2014/30/EU -
Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of
certain hazardous substances (RoHS)
Weight
N.W.: 8.5kg
G.W.: 10.5kg
Dimensions
Product Dimensions:
407(D)*320(W)*1528(H)mm
Packing Dimensions:
