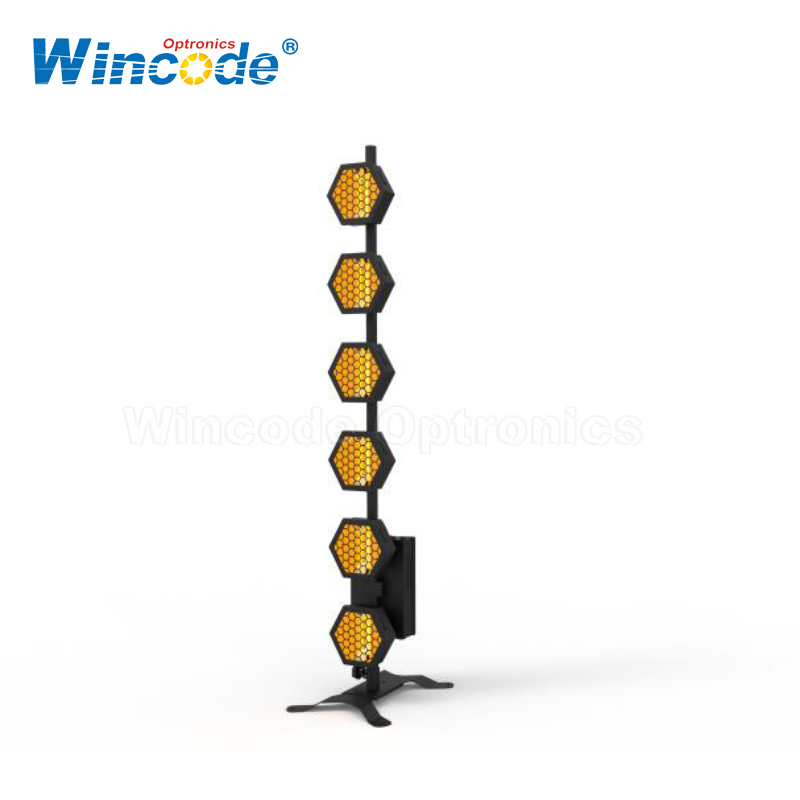

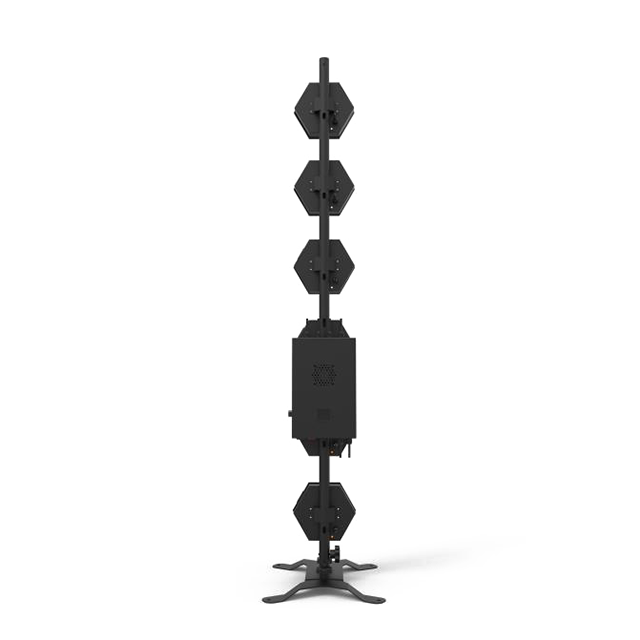

6×60W WW 2200K LED Retro Strobe Light

Light Source

Source:
WOP-LRL600：6×300W Halogen lamps (philips)  1900K-3200k

WOP-LRL600LED: 6×60W LED  2200K

WOP-LRL600RGB: 6×60W LED 2200K+144pcs SMD5050 RGB
Flicker free operation
for broadcast TV and FILM
The life span may vary depending on
several following factors but not limited to:
Environmental Conditions,Power/Voltage, Usage methods (On-Off Cycling), Control, etc.

Color System

WOP-LRL600： 1900K-3200k

WOP-LRL600LED: 2200K

WOP-LRL600RGB: 6×60W LED 2200K+144pcs SMD5050 RGB color mixing

Optics

Reflector bowl color : Golden /Silver(selected)

Strobe Effect

0-25Hz high speed shutter/strobe effect
with variable speed

Dimming System

0-100% Smooth linear LED dimming

Control System

1CH/6CH /6CH-Pixel DMX channels USITT
DMX-512
DMX512, master-slave, sound control or
auto operation
DMX recorder and edit function integrated
RDM available
(Remote Device Management)
Shielded input signal protection for stable
signal without interference
3/5-Pin XLR connectors IN/OUT

Software Update

Software up-datable
through DMX connectors
Muilt units up-datable in daisy chain

Display System

1.8" TFT LCD display
180°Reversible for LCD display
Display auto OFF

Cooling System

Advanced noise free cooling system
integrated aluminum
Constant temperature readout and
management function
Over temperature protection management

Power Supply

Electronic supply with active PFC
AC100-240V 50/60Hz
PowerCON connectors IN/OUT
WOP-LRL600：1800W

WOP-LRL600LED: 360W

WOP-LRL600RGB: 450W

Housing

hexagonal/ Circle (selected)

Skeleton made of
high tension steel metal plates
Exterior finish: Black

Installation

Hang on / Put on the base

Truss-hanging kits, 2 options (Optional)
Wall-mounting kit (Optional)
Floor-stacking kit (Optional

Operating Condition

Operating positions: all
-25℃ to 45℃ ambient temperature
IP20 protection rating

Compliance

CE
2014/35/EU - Safety of electrical
equipment supplied at low voltage (LVD)
2014/30/EU -
Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of
certain hazardous substances (RoHS)

Weight

N.W.: 8.5kg
G.W.: 10.5kg

Dimensions

Product Dimensions:
407(D)*320(W)*1528(H)mm
Packing Dimensions:
