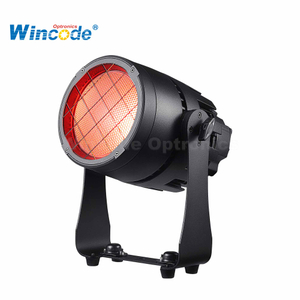

WOP-LS2003
Wincode Optronics
optics
Light source: 200×3W CW + 800 × 0.5W RGB
- Beam Angle: 68°
- Spot Angle: 114°
- Average life: 50000 H
effect
- Fast electronic stroboscopic 1 to 20 Hz
- Dimming mode: 5
- Dimming curve: 4 curves
colour
- Uniform RGB color mixing system and rainbow effect
- Create infinite movement, infinite color changes
Control and programming
- Control channel: Three modes (15/50/158 CH)
- Protocol: Standard DMX512 protocol
- Data connection: three-pin input/output
software
- Software update via DMX signal is easy and fast
- Temperature intelligent protection, to ensure the life of the LED lamp body structure and heat dissipation
- Aluminum alloy die-cast structure
- Natural heat dissipation
Power supply and power
- Input voltage: AC 110V to 240V 50/60Hz
- Rated power: 600W
- Stroboscopic power: 1000W
other
- Protection level: IP65
- Working environment: -40℃ ~ 45℃
- Starting environment: -20℃ ~ 45℃
Dimensional weight
- Size: 408× 274 × 162mm
- Net weight: 11.4kgs
