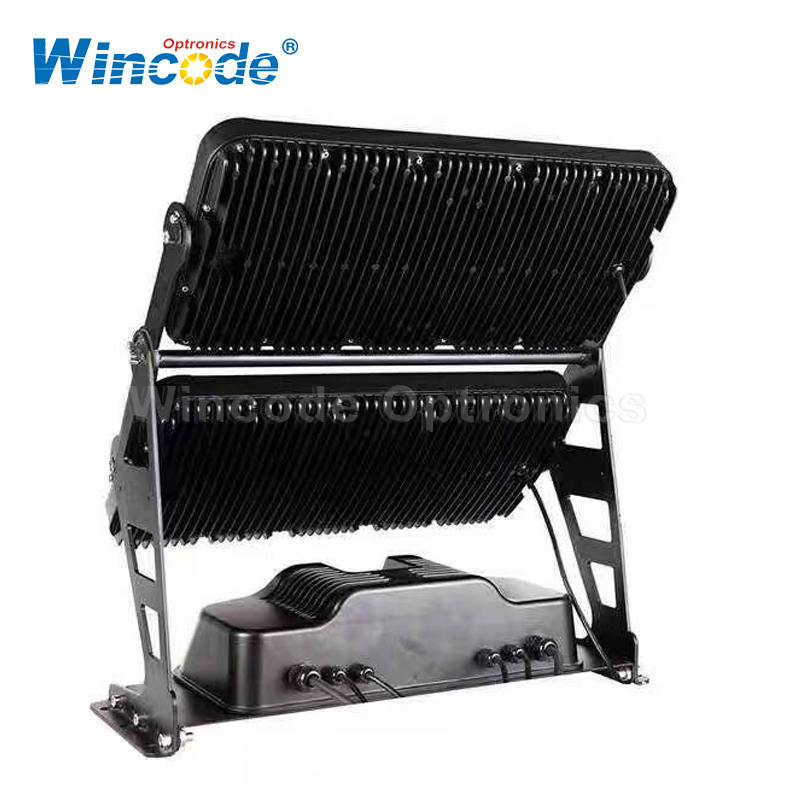

WOP-LCT96104
Wincode Optronics
Light Source
WOP-LCT72104: 72×10W RGBW 4-IN-1 RGBW LED
WOP-LCT96104: 96×10W RGBW 4-IN-1 RGBW LED
WOP-LCT120104: 120×10W RGBW 4-IN-1 RGBW LED
Flicker free operation
for broadcast TV and FILM
Life Span: 50000H
The life span may vary depending on
several following factors but not limited to:
Environmental Conditions, Power/Voltage,
Usage Patterns (On-Off Cycling), Control,
and Dimming, etc)
Optics
72/96/120PCS high efficiency acrylic lens
15°/25°/45°Lens optional
20°/30°/45°Field angles
Colors
2 Segments controllable individually
Sophisticated 4 colors RGBW mixed
Even and soft light
coverage with pure mixing
Preset color macros
Strobe Effect
0-25Hz high speed shutter/strobe effect
with variable speed
Dimming System
0-100% Smooth linear LED dimming
Smoother dimming mode available
Control System
4/6/9 DMX channels USITT DMX-512
DMX512, master-slave,
sound activated or auto operation
3 Sound modes with sensitivity adjustable
Multi preset internal programs
DMX recorder and edit function integrated
Shielded input signal protection for stable
signal without interference
Seetronic IP65 3-Pin
XLR connectors IN/OUT
Display System
digital display
4 Control buttons
DMX monitor indicator
Power status indicator
Wireless signal indicator
180°Reversible for LCD display
Display auto OFF
Cooling System
Advanced cooling system integrated
aluminum and copper with liquid
Constant temperature readout and
management function
Over temperature protection management
Power Supply
Electronic supply with active PFC
AC100-240V 50/60Hz
IP65 PowerCON
IN/OUT with fuse
800W/1000W Power consumption
Housing
Aluminum die-casting
and steel metal plates
Tilt angle manually adjustable
Exterior finish: Black
Operating Condition
Operating positions:
all (device on floor or fixed to a support)
-25℃ to 45℃ ambient temperature
IP65 protection rating
Compliance
CE
2014/35/EU - Safety of electrical
equipment supplied at low voltage (LVD)
2014/30/EU -
Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of
certain hazardous substances (RoHS)
Weight
N.W.: 29kg
G.W.: 32kg
Dimensions
Product Dimensions:
520(D)*610(W)*570(H)mm
Packing Dimensions:
540(D)*620(W)*715(H)mm
