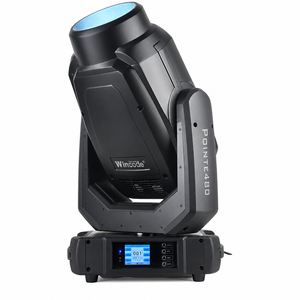

300W BSW Hybrid LED Moving Head Light

1、High power 300W LED Engine
2、Beam Spot Wash 3 in 1
3、8 Fixed Gobos & 7 Rotatic Gobos
4、RDM Support
Availability:
Quantity:
  • WOP-LM1013

  • Wincode Optronics

WOP-LM1013 300W Beam Spot Wash 3 in 1 LED Moving Head Light is made of a new type of high temperature strength of engineering plastics and cast aluminum casing with nice outlook. This is LED based beam spot wash 3 in 1 moving head light, with a 300w white LED engine, Beam angle zooming 8 - 40°,also with Iris function.7 colors,8 fixed gobos,7 rotate gobos.3-facets prism. The fixture is designed and manufactured strictly following CE UL standards, complying with international standard DMX512 protocol. It’s available independently controlled and linkable with each other for operation. And it is applicable for live performances, theater, studio, night clubs and discos.



Product parameters

Power supply

- AC 100~240V 50/60Hz

Power Consumption: 450W

Fuse- T 6.3A


Movement

- Pan: 540°

- Tilt: 270°

- Pan/Tilt moving speed adjustable.

- Automatic Pan/Tilt correction.

- Easy calibration and maintenance by magnetic home positioning.

- Pan/Tilt position lock for transporting protection.


Light Source

- 1 piece Super bright 300w white LED


OPTICAL SYSTEM

-Lens: coated with anti-reflection film lens

-Beam Angle: 8 - 40°


Dimmer/Shutter

- Blackout, 0~100% smooth dimming, independent shutter and various strobe effect.


Color wheel

- Color wheel: One color wheel with 7 color chips plus open


Gobo wheel

- Gobo Wheel 1: 1 Static gobo wheel with 8 gobos plus open

- Gobo Wheel 2: 1 Rotating gobo wheel with 7 gobos plus open

- Easy calibration and maintenance by magnetic home positioning.

- Module design for easy assembly and service.


Prism

- Prism 1: 3 facet prism rotating in both directions


Frost

- Independent frost effect


Focus

- Motorized Focus

- Zoom


Cool

- Fan cooled


Protocols

- DMX 512

- Date input/output: 3 Pin XLR socket


Weight

- 21Kg


Dimension

- 420×300×620 mm
